Update #0

Preview of Pax: a cross-platform GUI toolkit for Rust developers

Pax is now available in alpha preview. It is not yet fully useful or functional, but will now be developed in the open, in hopes that others may find Pax interesting and choose to help push it forward.

Read this section of Pax’s docs for some ideas on how to help.

Run demo

As of this writing, you can run the Pax demo for macOS and Web on the jabberwocky-demo branch, after following the instructions in README.md, then using the shell scripts ./run.sh and ./run-web.sh

This has only been tested on macOS! The Web example should work, perhaps out-of-the-box, on Linux and Windows development machines. The macOS example will only compile if you are developing on a Mac.

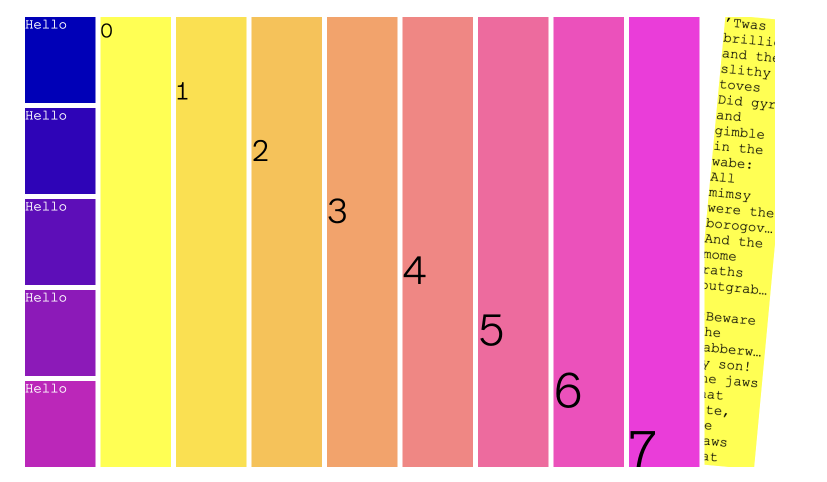

Run the Jabberwocky demo live at https://docs.pax.rs/intro-example.html

Compiler finish-line

The most fundamental remaining work for Pax to become useful is to finish automation of the compiler. Until that automation is complete, here are the manual steps necessary to write a Pax program today:

• "unroll" any Pax code into RIL ("Rust Intermediate Language"), in the specific format required by pax-cartridge. This includes creating individual vtable entries for each expression and writing instance factories for each component.

• compile the resulting Rust "cartridge" into a library

• load that cartridge library into one or more native app chassis (e.g. pax-chassis-macos) and build the chassis/cartridge combo into a single cdylib, then

• plug that cdylib into the appropriate platform "harness", running an external compiler to generate a final executable (.app, .exe, etc.)

This is not particularly user-friendly: what would be the point of writing C if you had to manually unroll it into assembly before you could run a program?

The work for the compiler finish-line is happening on the master branch on GitHub. Once this work is done — and you can write + automatically compile basic Pax programs — Pax can progress from alpha preview to alpha.

Hot on the heels of compiler finish-line work will be error message improvements and a language server for debugging & syntax highlighting, among other things.

Async

A common use-case with GUIs is: "load some data from server; update GUI."

While awaiting a response from the server, a user may reasonably expect that the GUI will continue rendering, animating, or updating.

This is not yet the case for Pax, because it does not yet attach to async Rust code.

The planned approach is to write all future event handlers as async, and to dispatch those methods asynchronously via the Pax runtime.

#[pax(/*...*/)]
pub struct MyStruct {
    pub app_data: Property<String>
}
impl MyStruct {
    //Note the `async` below!
    #[pax_on(DidMount)]
    pub async fn fetch_data(mut self) {
        //Proposed API:  for async functions, a "disposable" copy of the struct is passed by move from the Pax runtime. `my_crate::MyStruct::fetch_data(disposable_copy)`
        //`Property` is in charge of opaquely managing message-passing, such that by calling
        //`self.app_data.set("new value".to_string())` on this local, disposable `self`, a message is
        //sent to the canonical PropertyInstance to update its value.
    }
}

The above approach will require embedding an async runtime into the engine. In the long run, this will require that the async runtime can be parameterized, or swapped out. One possible approach is via the patch mechanism used already inside pax build.

Cross-platform++

Further work remains to run Pax on more screens. To support a new platform (like Android,) a new chassis and dev harness must be built. Thus far, two (chassis, dev harness) pairs have been built: see pax-chassis-macos/ and pax-chassis-web/.

In order to support targeting Linux, Windows, Android, and iOS, a chassis and dev harness will need to be written for each platform. In broad strokes:

1. writing a low-level bridge in a platform-native language (e.g. Swift on macOS) to accept the C structs that pass over the wire from the Pax engine, and

2. interpreting these structs as messages, mapping into CRUD operations for native elements like text and form controls. (search for the method processNativeMessageQueue in pax-chassis-macos for an example.) pax-chassis-ios will be able to share about 90% of the logic already written for pax-chassis-macos, so iOS support is close at hand.

3. keeping each chassis' CRUD logic updated over time with the addition of further native rendering elements, like form controls and drawing primitives

More primitives, form controls, and layout components

Pax's component library is just getting started, and to be a truly useful GUI and graphics toolkit it requires a more thorough standard library.

Some high-priority upcoming pieces:

Form controls:

• Dropdown list

• Text input box

• Checkbox

• Radio button list

• File upload

• Date picker

Drawing primitives

• Path (bezier sequence)

• Ellipse

• Polygon

Layouts & widgets

• Scroller (plus native scrolling hookups)

Interested in helping?

See this article on contribution.
